Automotive Ethernet Testing

Automotive Ethernet

Consumers are demanding smarter, safer and more connected vehicles. The pressure to deliver these advanced infotainment, collision avoidance and driver assistance features while maintaining costs has created a tremendous challenge. In pursuit of these new bandwidth hungry and latency sensitive devices or applications, the automotive industry is moving rapidly to adopt Ethernet's scalable and flexible networking technology. Aukua Systems is working with leading Automotive semiconductor companies, Tier 1 suppliers and OEM Manufacturers to develop new test tools to help them get to market faster, with less risk and with more robust and competitive products.

Learn more about Aukua's Automotive Ethernet Testing Solutions




Aukua's 3-in-1 Automotive Ethernet Testing Solutions

The Aukua's unique 3-in-1 solution supports three tools in one with the ability to be an end-point traffic generator and analyzer, an inline analyzer for PCS and packet capture and visibility, or as an inline network impairment emulator for limiting bandwidth, inserting delay and adding impairments to verify applications are robust enough to handle real-world automotive network conditions. And only Aukua's MGA2510 supports BASE-T, BASE-T1, and BASE-RH interface rates. Now including the new multigigabit automotive BASE-T1 rates of 2.5G/5G/10GBASE-T1 (IEEE 802.3ch). Additionally, testing IEEE 802.3cg 10BASE-T1S is now supported.

FInd out if you're ready for the 'Real-World'?


Traffic Generator

Perform functional testing, throughput performance testing, Bit Error Rate integrity testing, measure link-up time as well as time-to-first packet, and precisely characterize one-way and round-trip latency of a device or system.

Packet Capture and Analyzer

Transparently sit inline to capture packets, monitor traffic in real-time, capture and troubleshoot hard to find problems. Perform event timing correlation and analysis.

Network Impairment Emulator

Application performance testing under real-world bandwidth, delay and impairment conditions. Realistically and repeatably reproduce real-world issues for faster problem resolution. Request the Automotive Ethernet Testing With Network Impairment Emulation Solution Brief to learn more.

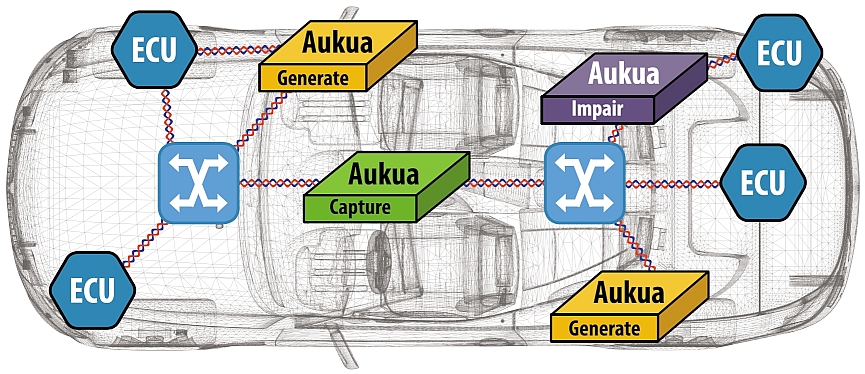

Aukua MGA2510 3 in 1 Automotive Ethernet Test Solution: CAPTURE, GENERATE, IMPAIR Aukua Automotive Ethernet Test Solution

Feature Highlights

  • Industry's broadest support of Automotive Ethernet interfaces:
    10GBASE-T1, 5GBASE-T1, 2.5GBASE-T1 (IEEE 802.3ch), 1000BASE-T1 (IEEE 802.3bp), 100BASE-T1 (IEEE 802.3bw), optical 1000BASE-RH (IEEE 802.3bv),
    and 10BASE-T1S (IEEE 802.3cg)
  • Precisely Characterize Latency with 1ns precision
  • Inline packet capture and Layer 1 PCS bit capture tools with powerful filter and trigger capability
  • Bit Error Rate Integrity Testing
  • Recreate real-world delay, bandwidth limited and impairment conditions
  • An RFC 2544 Test Suite is included for performance benchmark testing (throughput, latency, jitter, frame loss and burst tolerance)
  • Media conversion between BASE-T Ethernet and BASE-T1 Automotive Ethernet
  • Real-time stats and graphical analysis

Learn more about our 3-in-1 Automotive Ethernet Test and Visibility Solution

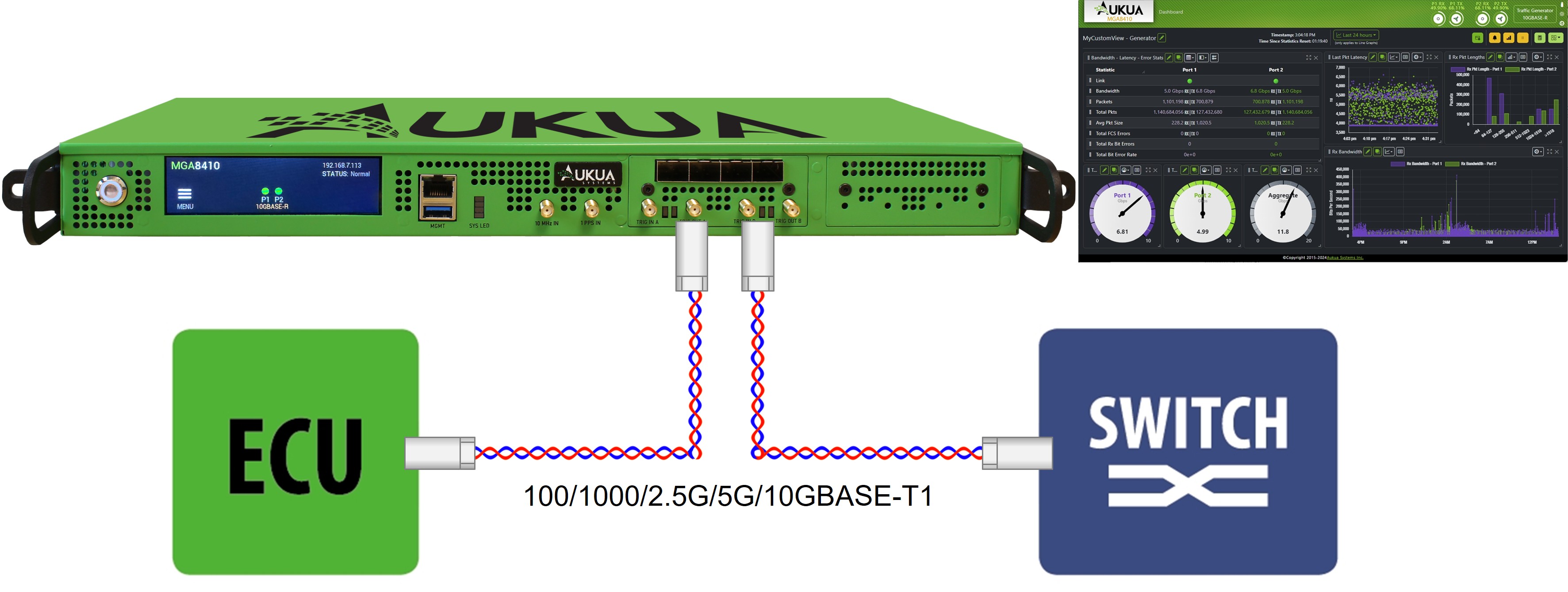

Example deployment of MGA2510 Automotive Ethernet Test Solution Aukua MGA2510 Automotive Ethernet - Example Inline Testing Application for Capture Analysis, or Delay and Impairment Emulation
